Boiler Retubing Beneath a Busy Manchester Train Station
H.A. McEwen Industrial Boiler Repairs restored a boiler with corroded and leaking tubes beneath a busy train station in Manchester. With difficult access and significant disruption associated with replacement, retubing provided a practical way to return the existing boiler to service.
The Challenge
The boiler plant’s location made a full replacement particularly challenging. Removing the existing boiler and bringing in a new unit would have required substantial logistical planning, with access beneath an operational station presenting restrictions on moving large equipment.
Although the boiler’s tubes required replacement, replacing the entire plant would have caused unacceptable disruption. The project therefore focused on repairing the existing boiler, with careful planning needed to access the affected components and carry out the work within the available space.
The Repair Process

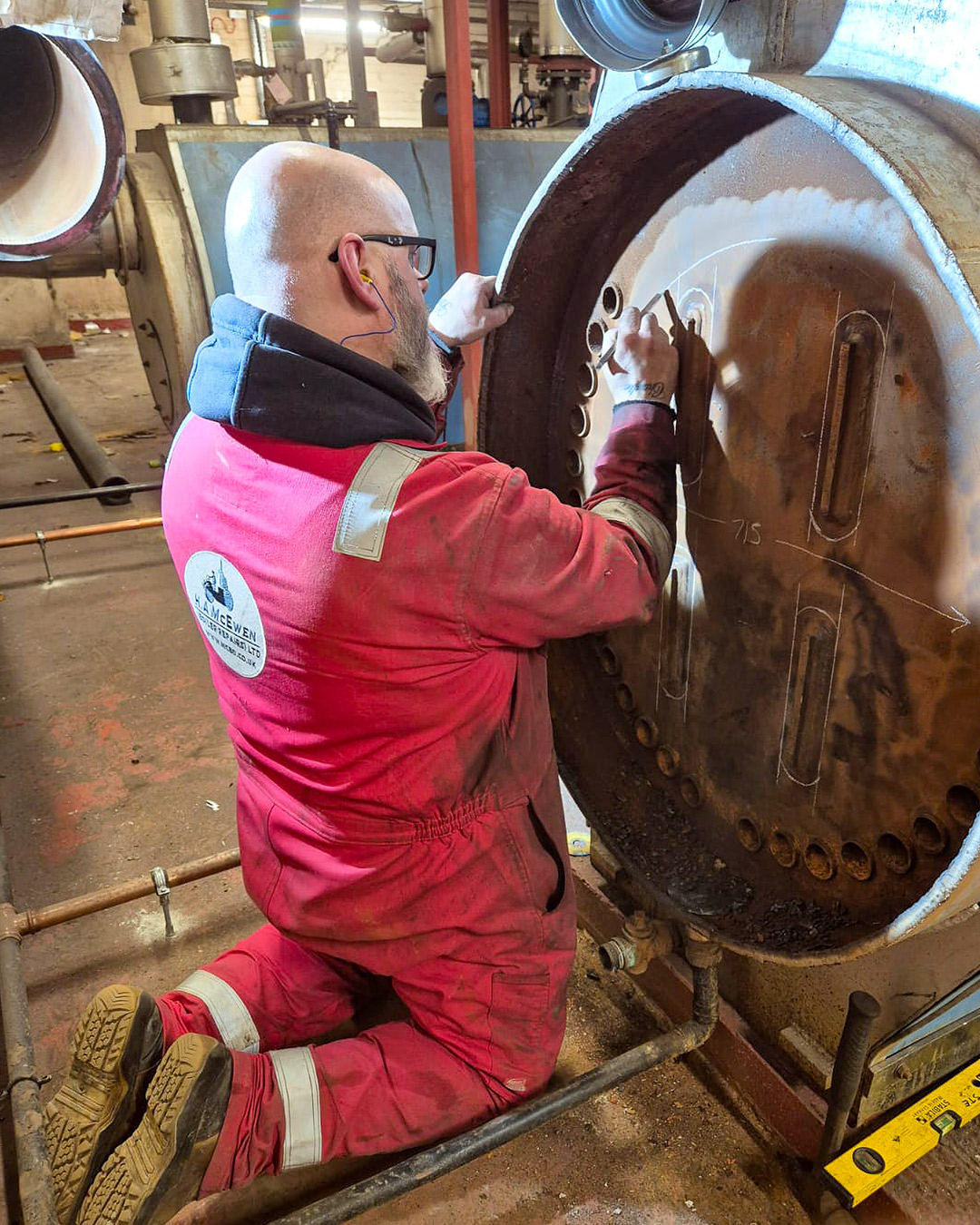

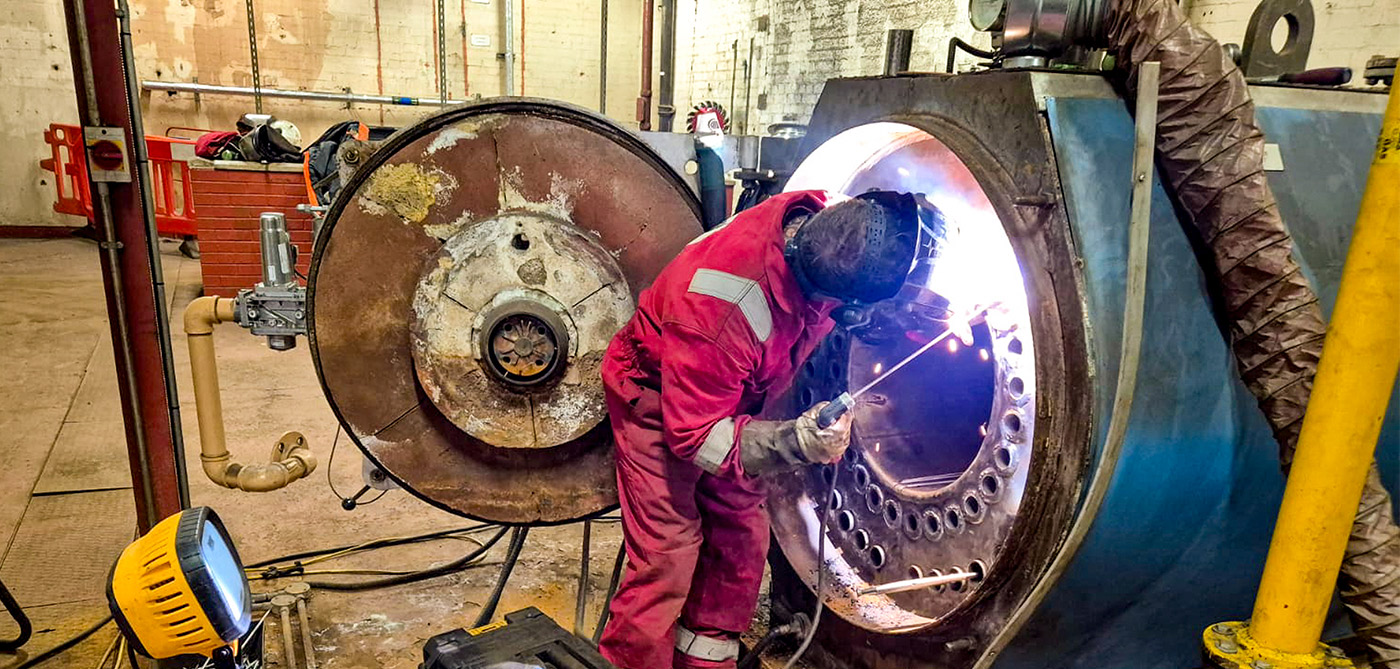

To gain access to the tubes, our team carefully cut away the flue, steam box and tube plate at one end of the boiler. This opened up the working area needed to remove the damaged tubes and install replacements.

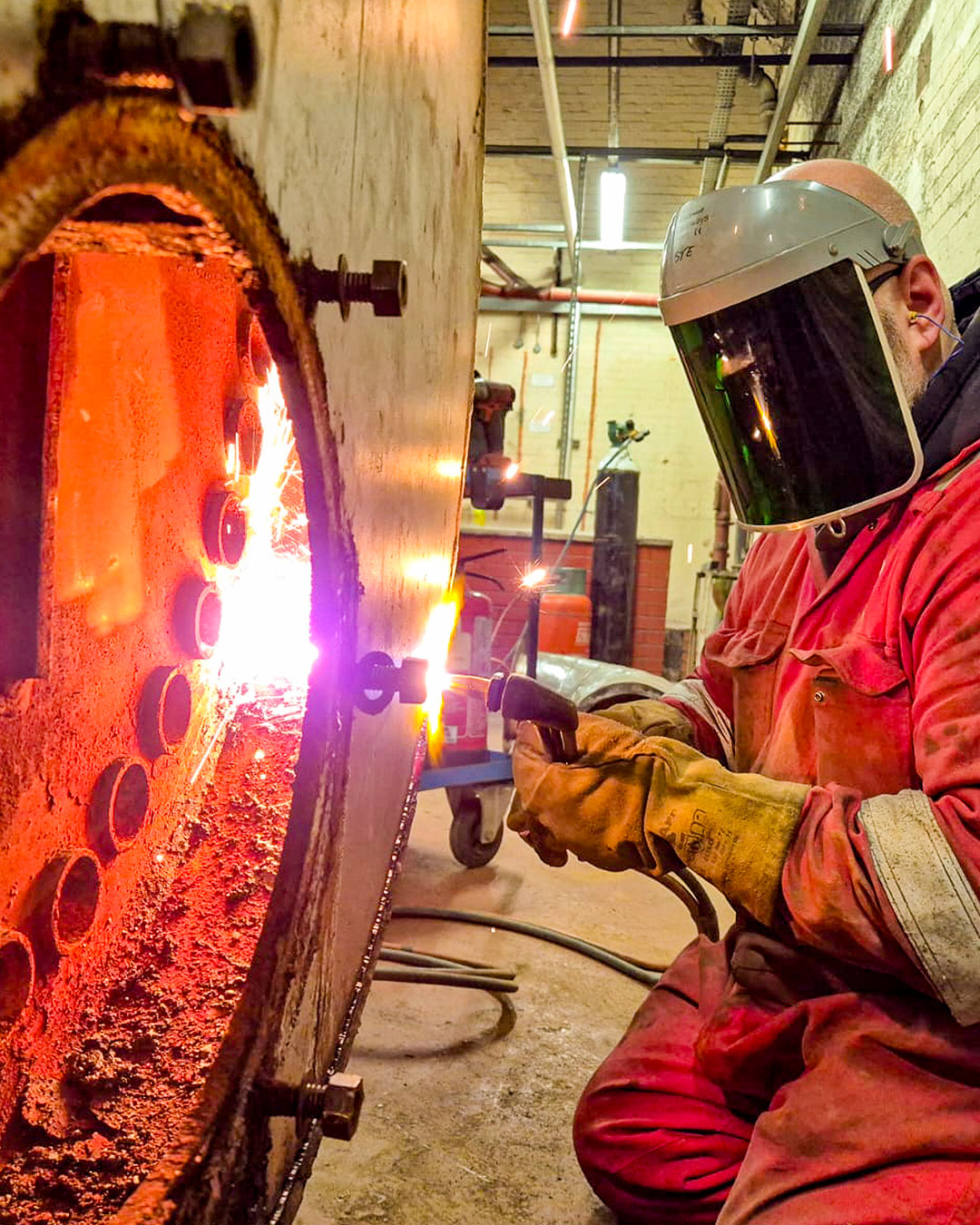

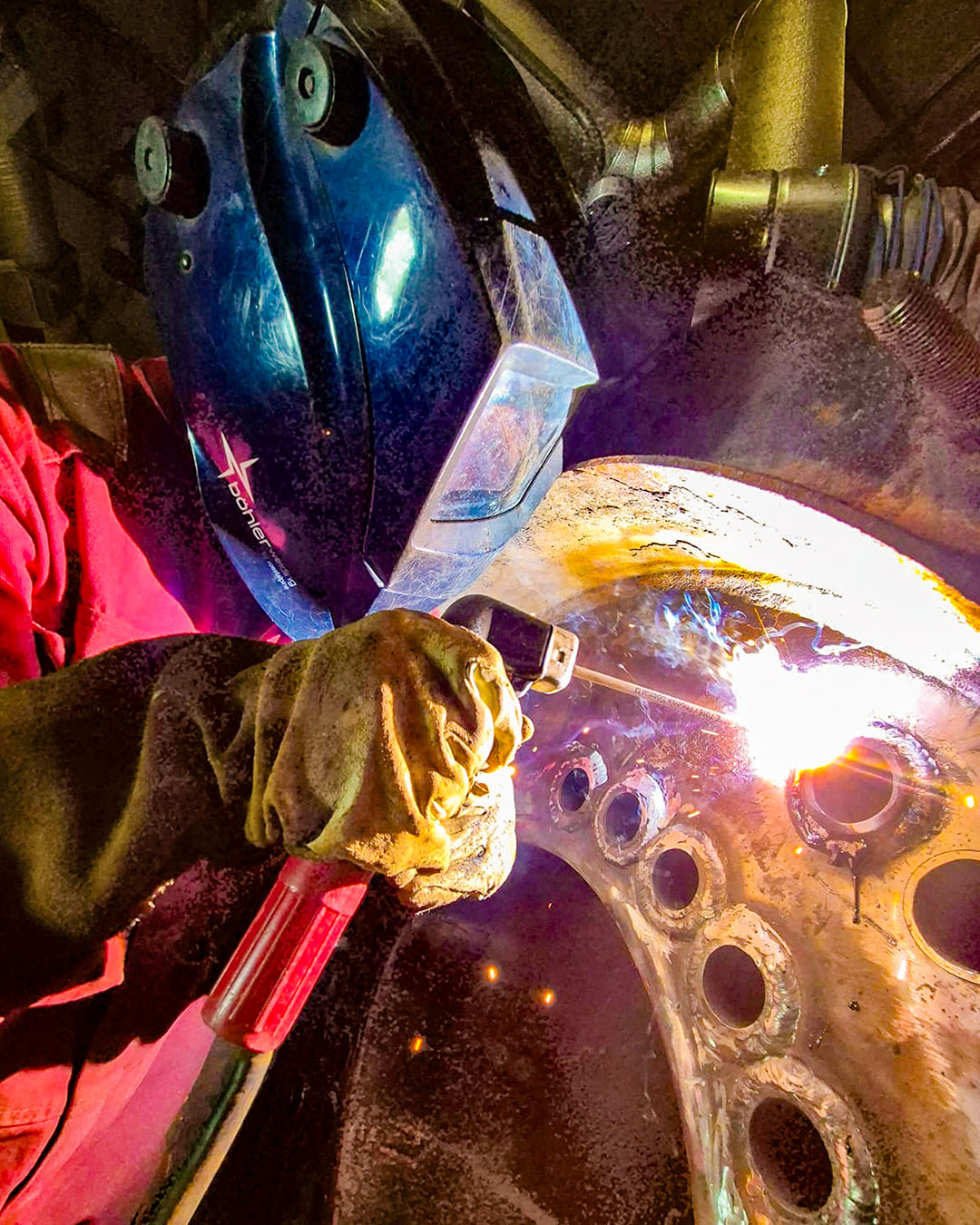

The tubes were clamped for stability while their existing welds were removed, allowing controlled extraction. New tubes were then installed, followed by the reassembly of the boiler and the reinstatement of the components removed for access.
The work required a planned sequence of dismantling, tube removal, installation and reassembly. This was particularly important given the access constraints and the need to complete the repair within the existing boiler plant.
Following reassembly, magnetic particle inspection (MPI) was carried out to check for surface and near-surface defects in the inspected areas. The boiler was then successfully recommissioned and returned to service.
The repair resolved the corroded and leaking tube issue while avoiding the disruption associated with removing and replacing the complete boiler beneath the station.
Extending Boiler Service Life
Corroded or leaking tubes do not automatically mean that an entire boiler needs replacing. Where assessment confirms that the remaining boiler structure is suitable for continued service, retubing and associated repairs can restore functionality and support safe operation.
This is particularly relevant to sites where restricted access, surrounding infrastructure or operational demands make replacement impractical. Suitability depends on the condition of the boiler, the extent of deterioration and the inspection and testing required for its return to service.
For this Manchester project, H.A. McEwen’s retubing and repair capability provided a workable solution to a difficult access problem, allowing the client to retain the existing boiler and bring it back into operation.
